P25K | Headset Bearing

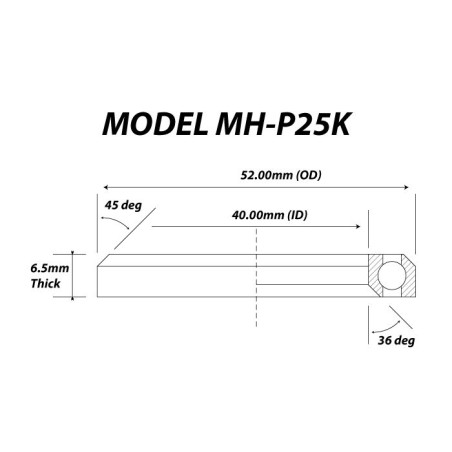

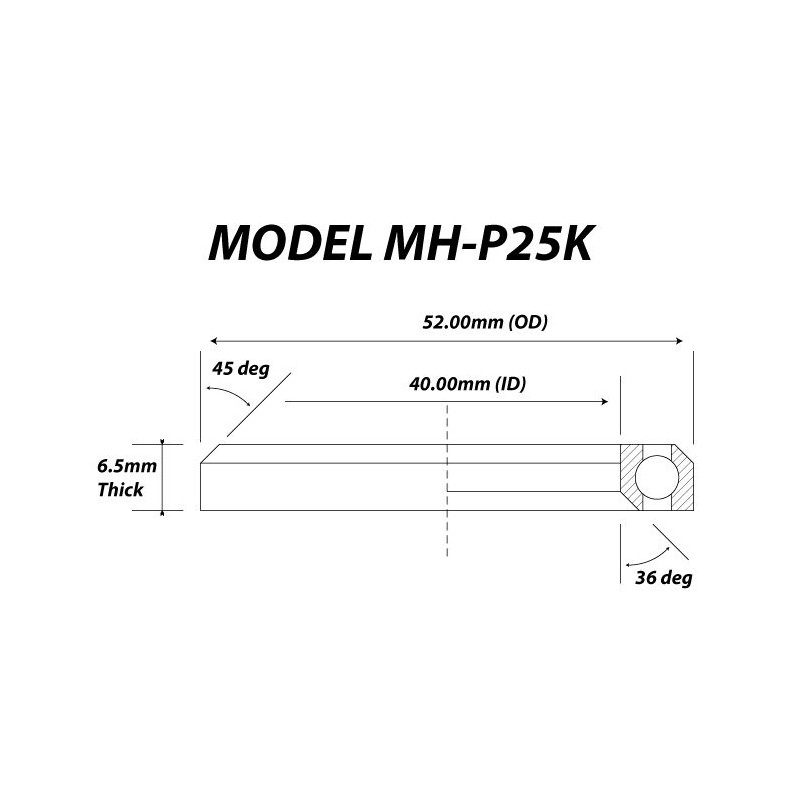

• Inner x Outer x Depth (mm): 40 x 52 x 6.5
• Inch Dia: 1-1/2”
• Angle / Chamfer (Deg): 36 / 45
• Bearing ID: 40.00mm
• Bearing OD: 52.00mm
• Bearing Thickness: 6.5mm
• Internal Angle: 36 Degrees
• External Angle: 45 Degrees
• Material: Bearing Steel
• Grease: Mobil XHP-222 or SINOPEC HTHS Bearing Grease
• Seal: Double-sealed 2RS
• Material: Chrome Steel 100Cr6 (Race & Balls)
• Cage Material: Nylon PA66
• Used On: Cane Creek 110 & 40 Series

Note, the image shows a Bearing with a Black Oxide coating which provides enhanced corrosion resistance. This is now our first choice stock for this size, but if supply becomes a problem, note we may supply this in a silver, non-coated finish.
