P22 | Headset Bearing
£14.99
THE MOST COMMONLY USED 1-1/4" BEARING FOR LOWER ON ROAD BIKES (CUBE, KUOTA, CANNONDALE AND MANY MORE)

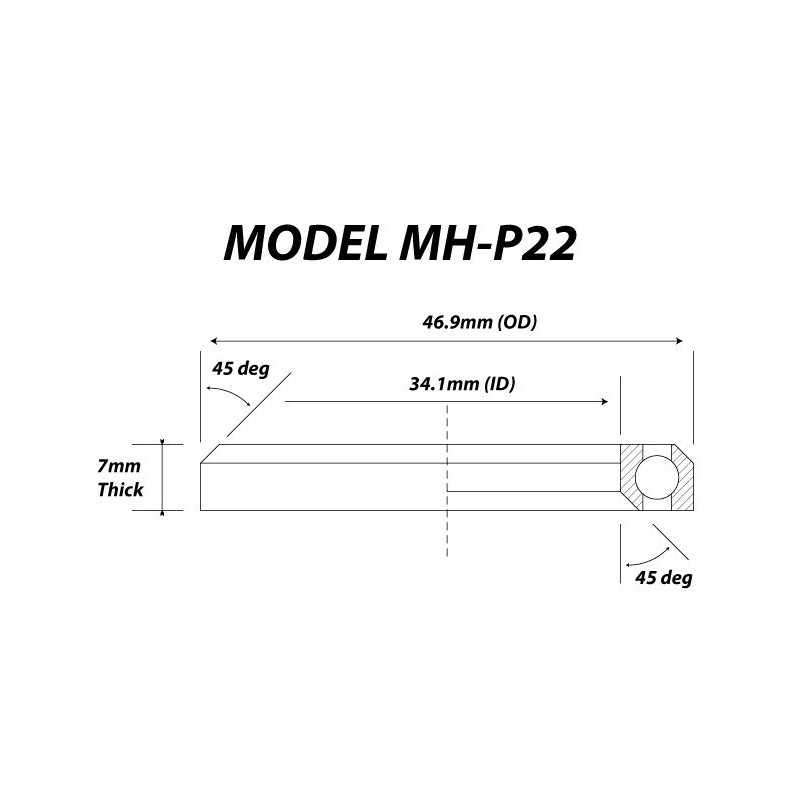

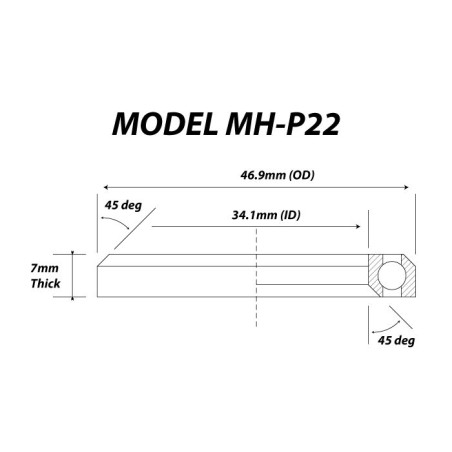

Inner x Outer x Depth (mm): 34.1 x 46.9 x 7
Inch Dia: 1 - 1 / 4”
Angle / Chamfer (Deg): 45 / 45
Material: Chromium Steel
- Inner x Outer x Depth (mm): 34.1 x 46.9 x 7
- Inch Dia: 1-1/4”
- Angle / Chamfer (Deg): 45 / 45
- Bearing ID: 34.1mm
- Bearing OD: 46.9mm
- Bearing Thickness: 7mm
- Internal Angle: 45 Degrees
- External Angle: 45 Degrees
- Material: Bearing Steel
- Grease: Mobil XHP-222 or SINOPEC HTHS Bearing Grease
- Seal: Double-sealed 2RS
- Material: Chrome Steel 100Cr6 (Race & Balls)
- Cage Material: Nylon PA66
- Used On: Kuota Road Bike, Cube Road Bikes & Many other Road Bikes using a Ritchey Lower Heaset Bearing of 1-1/4" Dia
- Equivalent Part Ref: ACB469
Note, the image shows a Bearing with a Black Oxide coating which provides enhanced corrosion resistance. This is now our first choice stock for this size, but if supply becomes a problem, note we may supply this in a silver, non-coated finish.
