P08H8 | Headset Bearing
£9.99

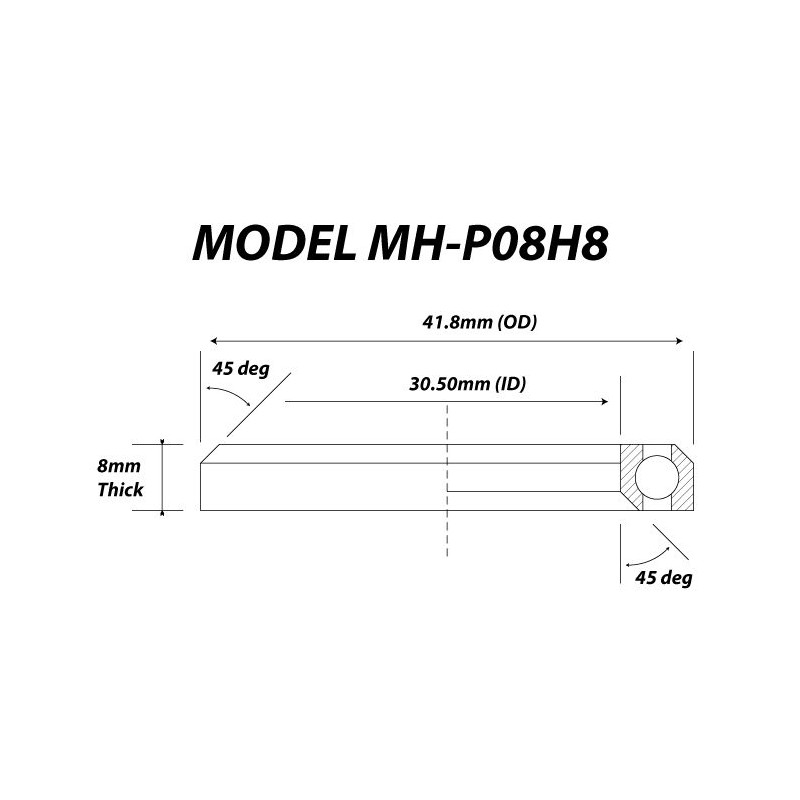

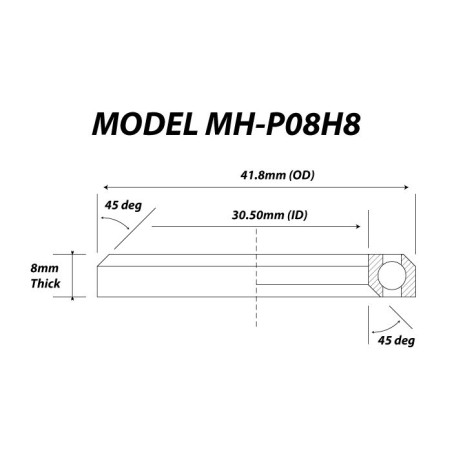

Inner x Outer x Depth (mm): 30.5 x 41.8 x 8
Inch Dia: 1-1/8”
Angle / Chamfer (Deg): 45 / 45
Material: Chromium Steel
Inner x Outer x Depth (mm): 30.5 x 41.8 x 8
Inch Dia: 1-1/8”
Angle / Chamfer (Deg): 45 / 45
Bearing ID: 30.5mm
Bearing OD: 41.8mm
Bearing Thickness: 8.0mm
Internal Angle: 45 Degrees
External Angle: 45 Degrees
Material: Bearing Steel
Grease: Mobil XHP-222 or SINOPEC HTHS Bearing Grease
Seal: Double-sealed 2RS
Material: Chrome Steel 100Cr6 (Race & Balls)
Cage Material: Nylon PA66
Note, the image shows a Bearing with a Black Oxide coating which provides enhanced corrosion resistance. This is now our first choice stock for this size, but if supply becomes a problem, note we may supply this in a silver, non-coated finish.
