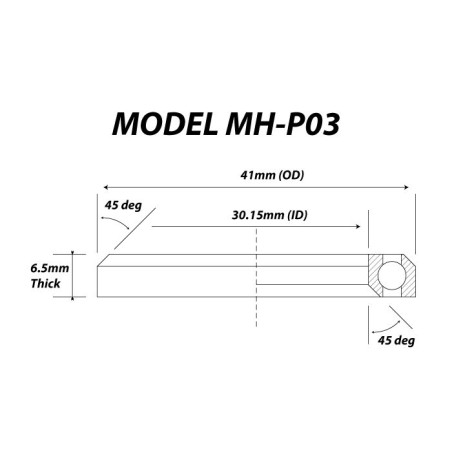

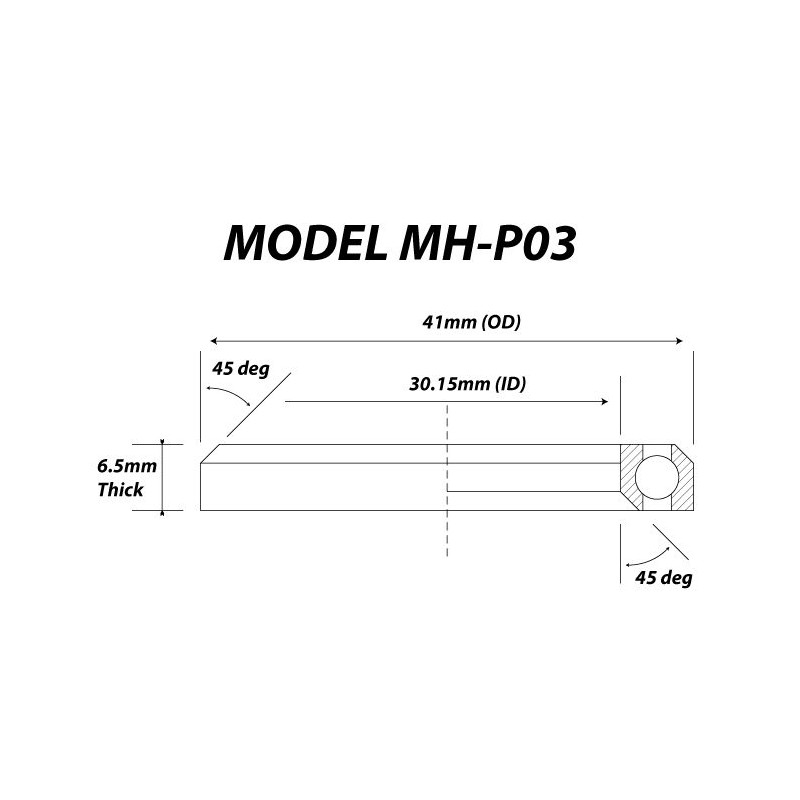

P03 | Headset Bearing

• Inner x Outer x Depth (mm): 30.15 x 41 x 6.5
• Inch Dia: 1-1/8”
• Angle / Chamfer (Deg): 45 / 45
• Bearing ID: 30.15mm
• Bearing OD: 41.0mm
• Bearing Thickness: 6.5mm
• Internal Angle: 45 Degrees
• External Angle: 45 Degrees
• Material: Bearing Steel
• Grease: Mobil XHP-222 or SINOPEC HTHS
• Bearing Grease Seal: Double-sealed 2RS
• Material: Chrome Steel 100Cr6 (Race & Balls)
• Cage Material: Nylon PA66

Note, the image shows a Bearing with a Black Oxide coating which provides enhanced corrosion resistance. This is now our first choice stock for this size, but if supply becomes a problem, note we may supply this in a silver, non-coated finish.
