ACB518K | Headset Bearing
£14.99
THE MOST POPULAR LOWER 1 - 1 / 2" BEARING - CANE CREEK FIT
ALSO SEE 'TH073' FOR THE FSA DIRECT ALTERNATIVE IF OUT OF STOCK
Equivalent Part Ref: MR110, MR127, TH-073, TK518B, MH-P28K

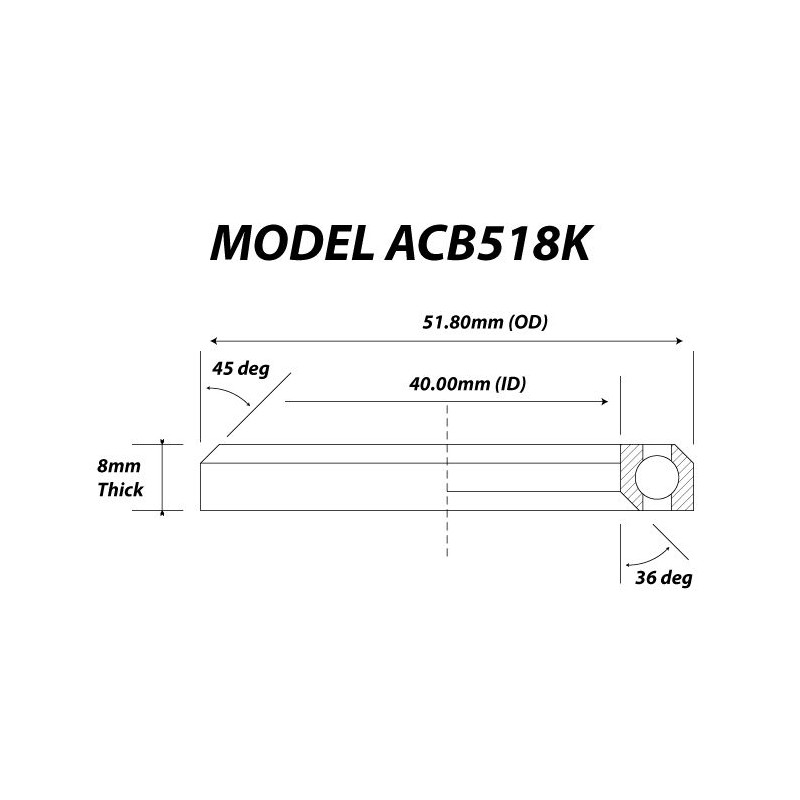

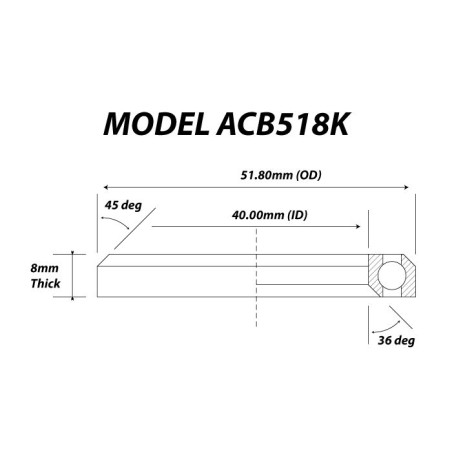

Inner x Outer x Depth (mm): 40 x 51.8 x 8
Inch Dia: 1 - 1 / 2”
Angle / Chamfer (Deg): 36 / 45
-
- Inner x Outer x Depth (mm): 40 x 51.8 x 8
- Inch Dia: 1-1/2”
- Angle / Chamfer (Deg): 36 / 45
- Bearing ID: 40.00mm
- Bearing OD: 51.8mm
- Bearing Thickness: 8.0mm
- Internal Angle: 36 Degrees
- External Angle: 45 Degrees
- Material: Bearing Steel
- Grease: Mobil XHP-222 or SINOPEC HTHS Bearing Grease
- Seal: Double-sealed 2RS
- Material: Chrome Steel 100Cr6 (Race & Balls)
- Cage Material: Nylon PA66
- Equivalent Part Ref: MR110, MR127, TH-073 & TK518B
Note, the image shows a Bearing with a Black Oxide coating which provides enhanced corrosion resistance. This is now our first choice stock for this size, but if supply becomes a problem, note we may supply this in a silver, non-coated finish.
